响应曲面法优化木薯酒精污泥基活性炭制备及对没食子酸的吸附性能

doi:10.12034/j.issn.1009-606X.220204

过程工程学报 ›› 2021, Vol. 21 ›› Issue (7): 794-806.DOI: 10.12034/j.issn.1009-606X.220204CSTR: 32067.14.jproeng.220204

响应曲面法优化木薯酒精污泥基活性炭制备及对没食子酸的吸附性能

张智霖¹(), 丁磊¹^,²(), 周强¹, 余剑¹, 郭昌进¹, 张德伟²^,³

^1.安徽工业大学建筑工程学院，安徽马鞍山 243032
^2.生物膜法水质净化及利用技术教育部工程研究中心，安徽马鞍山 243032
^3.安徽华骐环保科技股份有限公司，安徽马鞍山 243071

收稿日期:2020-06-28 修回日期:2020-09-01 出版日期:2021-07-28 发布日期:2021-07-27
通讯作者: 丁磊 zhangzhilin1211@163.com;dinglei1978@163.com
作者简介:张智霖(1996-)，男，安徽省马鞍山市人，硕士研究生，市政工程专业，E-mail: zhangzhilin1211@163.com
丁磊，通讯联系人，E-mail: dinglei1978@163.com.
基金资助:
国家自然科学基金资助项目(51308001);安徽省高校优秀拔尖人才培育资助项目(gxyqZD2017036)

Optimization of preparation of cassava alcohol sludge-based activated carbon by response surface methodology and its adsorption properties for gallic acid

Zhilin ZHANG¹(), Lei DING¹^,²(), Qiang ZHOU¹, Jian YU¹, Changjin GUO¹, Dewei ZHANG²^,³

^1.School of Civil Engineering and Architecture, Anhui University of Technology, Ma'anshan, Anhui 243032, China
^2.Engineering Research Center of Biomembrane Water Purification and Utilization Technology, Ministry of Education, Ma'anshan, Anhui 243032, China
^3.Anhui Huaqi Environmental Protection Technology Co. Ltd. , Ma'anshan, Anhui 243071, China

Received:2020-06-28 Revised:2020-09-01 Online:2021-07-28 Published:2021-07-27
Contact: Lei DING zhangzhilin1211@163.com;dinglei1978@163.com

摘要/Abstract

摘要：

以木薯酒精厂生产过程中产生的脱水污泥为原料，采用响应曲面法 Box-Behnken模型优化了木薯酒精污泥基活性炭的制备工艺，同时对最优成品进行一系列表征分析，并将其应用于没食子酸废水的处理研究。活性炭的最优制备条件为活化温度489℃，浸渍时间14 h，活化时间51 min，氯化锌浓度21.53%，该条件下样品的碘吸附值达521.64 mg/g。表征分析显示其表面布有众多孔壁较薄、大小不一的孔洞，金属含量较小，BET比表面积达441.86 m²/g，平均孔径为2.50 nm，拥有丰富的微孔结构，表面富有较多的含氧官能团。考察了活性炭投加量、pH、接触时间、溶液温度对样品去除水中没食子酸的影响。结果表明，样品能够高效去除没食子酸，且随着投加量的增加和pH值降低，没食子酸的去除率呈增长趋势。木薯酒精污泥基活性炭对没食子酸的吸附符合pseudo second-order动力学模型和Freundlich等温模型，最大吸附量为126.72 mg/g。扩散机理显示除颗粒内扩散外也包含液膜扩散过程。热力学分析表明该吸附反应是自发进行的吸热且熵增的过程。本研究将为制备高性能污泥活性炭并应用于高浓度天然有机物废水处理提供理论基础。

关键词: 木薯酒精污泥, 活性炭, 响应曲面法, 没食子酸, 吸附

Abstract:

The dewatered sludge from the production process of cassava alcohol plant was used as raw material. Response surface methodology was applied to optimize the preparation of cassava alcohol sludge activated carbon. At the same time, a series of characterization analysis was carried out for the optimal product, which was applied to the treatment of gallic acid wastewater. The results showed that the optimal preparation conditions were: activation temperature of 489℃, impregnation time of 14 h, activation time of 51 min, zinc chloride concentration of 21.53%, the adsorption iodine value under this condition was 521.64 mg/g. The results of characterization to CASAC suggested that the BET surface was found as 441.86 m²/g and the average pore diameter as 2.50 nm. It was full of different sizes of small pores on the carbon surface. The activated carbon owned a low metal content but more oxygen-containing functional group after activation process. The effects of carbon dosage, pH, contact time and solution temperature on the removal of gallic acid from water were investigated. It is suggested that the sample carbon could remove gallic acid efficiently, and the removal rate of gallic acid increased with the increase of carbon dosage and the decrease of pH value. The adsorption of gallic acid by cassava alcohol sludgy-based activated carbon was in line with pseudo second-order kinetics model as well as Freundlich isothermal model. The maximum adsorption capacity was 126.72 mg/g. The diffusion mechanism showed that the adsorption process was influenced by the diffusion of liquid film in addition to the diffusion within particles. Thermodynamic analysis indicated that the adsorption of gallic acid was a spontaneous process of heat absorption and entropy increase. This study provided a theoretical basis for the preparation of high-performance activated sludge and the application of high concentration of natural organic wastewater treatment.

Key words: cassava alcohol sludge, activated carbon, response surface methodology, gallic acid, adsorption

中图分类号:

X703.1

张智霖, 丁磊, 周强, 余剑, 郭昌进, 张德伟. 响应曲面法优化木薯酒精污泥基活性炭制备及对没食子酸的吸附性能[J]. 过程工程学报, 2021, 21(7): 794-806.

Zhilin ZHANG, Lei DING, Qiang ZHOU, Jian YU, Changjin GUO, Dewei ZHANG. Optimization of preparation of cassava alcohol sludge-based activated carbon by response surface methodology and its adsorption properties for gallic acid[J]. The Chinese Journal of Process Engineering, 2021, 21(7): 794-806.

图/表 18

表1 Box-Behnken实验设计的自变量水平和编码值

Table 1 Independent variable levels and codified values for the Box-Behnken experimental design

Factor	Code	Level
Factor	Code	-1	0	1
Activation temperature/℃	A	400	500	600
Impregnation time/h	B	6	12	18
Activation time/min	C	30	60	90
Zinc chloride concentration/%	D	10	20	30

表2 Box-Behnken实验设计结果与实验及预测值

Table 2 Experimental Box-Behnken design matrix and measured and predicted results

Run	Activation temperature/℃, A	Impregnation time/min, B	Activation time/min, C	Zinc chloride concentration/%, D	Iodine values, R/(mg/g)
Run	Activation temperature/℃, A	Impregnation time/min, B	Activation time/min, C	Zinc chloride concentration/%, D	Experiment	Predict
1	500	12	90	10	490.21	490.45
2	500	6	60	30	503.17	503.89
3	500	12	60	20	525.24	521.49
4	500	6	90	20	506.38	503.06
5	500	12	90	30	447.16	456.53
6	400	18	60	20	493.57	490.82
7	400	12	30	20	454.21	465.91
8	500	18	90	20	472.93	478.86
9	500	18	30	20	515.08	516.46
10	400	12	60	10	470.93	468.77
11	500	12	60	20	515.63	521.49
12	500	18	60	30	502.18	493.55
13	500	6	60	10	480.93	491.19
14	600	18	60	20	458.98	462.14
15	400	6	60	20	492.63	489.8
16	500	6	30	20	502.60	494.74
17	500	12	30	30	508.62	508.69
18	600	12	60	30	445.74	445.95
19	400	12	90	20	484.65	482.49
20	500	18	60	10	498.15	499.05
21	600	12	90	20	434.93	424.85
22	600	12	30	20	466.93	470.71
23	600	12	60	10	447.05	446.89
24	500	12	30	10	476.64	467.57
25	400	12	60	30	478.70	476.91
26	500	12	60	20	518.76	521.49
27	600	6	60	20	462.58	465.64
28	500	12	60	20	527.47	521.49
29	500	12	60	20	520.36	521.49

表3 回归模型方程的标准差和R2分析结果

Table 3 Standard deviation and R2 for the regression model equation

Std. Dev.	Mean	C.V./%	PRESS	R²	Adj R²	Pred R²	Adeq precision
7.81	486.29	1.61	4529.62	0.96	0.91	0.77	17.20

表4 拟合模型和模型参数的方差分析统计

Table 4 ANOVA statistics for the fitted model and parameters in the model

Source	Sum of squares	Degree of freedom	Mean square	F	Prob>F
Model	18880.62	14	1348.62	22.11	<0.0001
A	2093.10	1	2093.10	34.31	<0.0001
B	4.56	1	4.56	0.075	0.7885
C	642.89	1	642.89	10.54	0.0059
D	39.05	1	39.05	0.64	0.4370
AB	5.15	1	5.15	0.084	0.7757
AC	974.59	1	974.59	15.98	0.0013
AD	20.59	1	20.59	0.34	0.5705
BC	527.28	1	527.28	8.64	0.0108
BD	82.93	1	82.93	1.36	0.2631
CD	1407.71	1	1407.71	23.08	0.0003
A²	10819.05	1	10819.05	177.34	< 0.0001
B²	81.88	1	81.88	1.34	0.2660
C²	2506.94	1	2506.94	41.09	< 0.0001
D²	2865.11	1	2865.11	46.96	< 0.0001
Residual	854.08	14	61.01
Lack of fit	761.20	10	76.12	3.28	0.1319
Pure error	92.89	4	23.22
Cor total	19734.70	28

图1 (a)残差正态分布与(b)残差与预测值关系图

Fig.1 (a) Normal plot of residuals and (b) residuals versus the predicted values

图2 (a)回归模型中各项影响百分比与(b)联合影响百分比

Fig.2 (a) Pareto chart of percentage effect of each term and (b) percentage of contribution

图3 各因素对CASAC碘吸附值影响的响应面与等高线图

Fig.3 3D plot and contour plots for adsorption capacity of iodine of CASAC with respect to the factors

图4 (a) CAS与(b) CASAC的扫描电镜与能谱图

Fig.4 SEM-EDS micrographs of (a) CAS and (b) CASAC

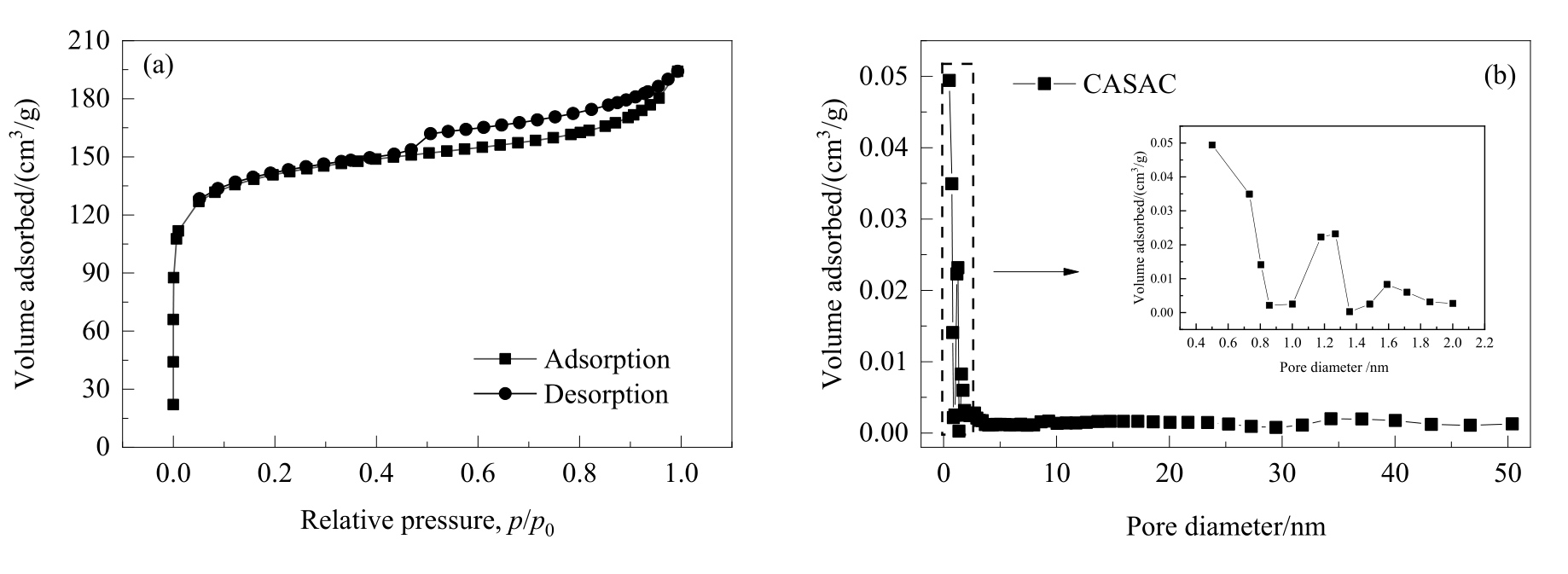

图5 (a) CASAC的N2吸附脱附等温线和(b)孔径分布图

Fig.5 (a) Nitrogen adsorption-desorption isotherms and (b) pore size distribution of CASAC

表5 CASAC的比表面积及孔结构

Table 5 Structural information of CASAC

Sample

S_BET/(m²/g)

S_Micro/(m²/g)

V_Total/

(cm³/g)

图6 CAS与CASAC的FT-IR图谱

Fig.6 FT-IR spectra of CAS and CASAC

图7 (a)投加量对去除率的影响和(b)初始pH值对去除率的影响

Fig.7 (a) Effect of dosage of CASAC and (b) initial pH value on removal rate

图8 (a) GA在CASAC上的吸附动力学拟合曲线及(b) CASAC吸附GA的颗粒内扩散模型

Fig.8 (a) The fitted curves of adsorption kinetics of GA on CASAC and (b) intra-particle diffusion models for GA on CASAC

表6 GA在CASAC的吸附动力学参数

Table 6 Kinetic parameter of GA adsorption on CASAC

Sample	Pseudo first-order model		Pseudo second-order model		Elovich model
Sample	k₁/min^-1	R²	k₂/[g/(mg·min)]	R²	$α$ /[mg/(g·min)]	$β /$ (g/mg)	R²
CASAC	0.127	0.777	0.005	0.966	3243.449	0.277	0.867

表6 GA在CASAC的吸附动力学参数

Table 6 Kinetic parameter of GA adsorption on CASAC

Sample	Pseudo first-order model		Pseudo second-order model		Elovich model
Sample	k₁/min^-1	R²	k₂/[g/(mg·min)]	R²	$α$ /[mg/(g·min)]	$β /$ (g/mg)	R²
CASAC	0.127	0.777	0.005	0.966	3243.449	0.277	0.867

表7 GA在CASAC上的颗粒内扩散模型拟合参数

Table 7 Parameters of intra-particle diffusion model for GA adsorption on CASAC

Sample	Intra-particle diffusion
Sample	$k p 1 /$ [mg/(g·min^1/2)]	$C 1$	R²	$k p 2$ /[mg/(g·min^1/2)]	$C 2$	R²	$k p 3$ /[mg/(g·min^1/2)]	$C 3$	R²
CASAC	3.825	17.973	0.997	0.490	38.856	0.998	0.057	45.171	0.988

表7 GA在CASAC上的颗粒内扩散模型拟合参数

Table 7 Parameters of intra-particle diffusion model for GA adsorption on CASAC

Sample	Intra-particle diffusion
Sample	$k p 1 /$ [mg/(g·min^1/2)]	$C 1$	R²	$k p 2$ /[mg/(g·min^1/2)]	$C 2$	R²	$k p 3$ /[mg/(g·min^1/2)]	$C 3$	R²
CASAC	3.825	17.973	0.997	0.490	38.856	0.998	0.057	45.171	0.988

图9 CASAC对GA的吸附等温模型

Fig.9 Adsorption isotherms of GA adsorption by CASAS

表8 CASAC对GA的吸附等温线模型拟合参数

Table 8 Parameters of the adsorption isotherm model for GA on CASAC

Sample	Temperature/K	Langmuir model			Freundlich model
Sample	Temperature/K	K₁	q_m/(mg/g)	R²	K₂	1/n	R²
CASAC	298	0.207	107.819	0.955	29.895	0.251	0.967
	308	0.202	115.487	0.961	31.164	0.259	0.967
	318	0.242	117.591	0.961	34.192	0.247	0.965

表9 吸附热力学模型参数

Table 9 Adsorption thermodynamic parameters

Sample	T/K	ΔG/(kJ/mol)	ΔH/(kJ/mol)	ΔS/[J/(mol·K)]
CASAC	298	-10.37	9.78	67.62
	308	-11.05
	318	-11.73

参考文献 32

1	Wu Y, Xia X, Dong S, et al. Industrial scale extraction and stripping devices for continuous recovery of gallic acid from Chinese nutgall processing wastewater [J]. Environmental Engineering Research, 2017, 22(3): 288-293.
2	Celestino G G, Henriques R R, Shiguihara A L, et al. Adsorption of gallic acid on nanoclay modified with poly(diallyldimethylammonium chloride) [J]. Environmental Science and Pollution Research, 2019, 26(28): 28444-28454.
3	杨德敏, 夏宏, 袁建梅. 臭氧氧化法处理焦化废水生化出水的反应动力学 [J]. 环境工程学报, 2014, 8(1): 32-37.
	Yang D M, Xia H, Yuan J M. Reaction kinetics of biological treatment of coking wastewater by ozonation [J]. Chinese Journal of Environmental Engineering, 2014, 8(1): 32-37.
4	李文君, 王成章. 微生物降解没食子酸生产焦性没食子酸的研究进展 [J]. 中国实验方剂学杂志, 2015, 21(3): 226-231.
	Li W J, Wang C Z. Advance on degrading gallic acid to pyrogallic acid applying microorganism [J]. Chinese Journal of Experimental Traditional Medical Formulae, 2015, 21(3): 226-231.
5	Panizza M, Cerisola G. Electrochemical degradation of gallic acid on a BDD anode [J]. Chemosphere, 2009, 77(8): 1060-1064.
6	张军杰, 刘娜, 高原, 等. 分子印迹磁性纳米材料对石榴皮中没食子酸的选择性富集和检测 [J]. 分析实验室, 2020, 39(5): 566-571.
	Zhang J J, Liu N, Gao Y, et al. Molecularly imprinted magnetic nanomaterials for selective enrichment and detection of gallic acid in pomegranate rind [J]. Chinese Journal of Analysis Laboratory, 2020, 39(5): 566-571.
7	徐超, 刘金鑫, 孙伟之, 等. 新型超高交联吸附树脂的制备及其对水杨酸、没食子酸吸附性能 [J]. 环境化学, 2018, 37(4): 807-816.
	Xu C, Liu J X, Sun W Z, et al. Synthesis of novel hypercrosslinked resin and their absorption towards salicylic acid and gallic acid [J]. Environmental Chemistry, 2018, 37(4): 807-816.
8	Wong S, Yac'cob N A N, Ngadi N, et al. From pollutant to solution of wastewater pollution: synthesis of activated carbon from textile sludge for dye adsorption [J]. Chinese Journal of Chemical Engineering, 2018, 26(4): 870-878.
9	Silva C P, Jaria G, Otero M, et al. Adsorption of pharmaceuticals from biologically treated municipal wastewater using paper mill sludge-based activated carbon [J]. Environmental Science and Pollution Research, 2019, 26(13): 13173-13184.
10	邓凤霞, 邱珊, 岳秀丽, 等. 非均相催化臭氧氧化深度处理炼油废水 [J]. 浙江大学学报(工学版), 2015, 49(3): 555-563.
	Deng F X, Qiu S, Yue X L, et al. Advanced treatment of refinery wastewater by heterogeneous catalytic ozonation [J]. Journal of Zhejiang University (Engineering Science), 2015, 49(3): 555-563.
11	Kacan E. Optimum BET surface areas for activated carbon produced from textile sewage sludges and its application as dye removal [J]. Journal of Environmental Management, 2016, 166: 116-123
12	鞠振宇. 木薯酒精废水治理工艺研究 [C]//《环境工程》2018年全国学术年会论文集(下册). 北京: 《环境工程》编辑部, 2018: 293-295.
	Ju Z Y. Study on treatment of cassava alcohol wastewater [C]//Proceedings of the 2018 national academic conference on environmental engineering (volume 2), Beijing: Editorial Office of Environmental Engineering, 2018: 293-295.
13	夏晨娇, 周宗远, 何锐. 木薯酒精废水的深度处理工程实例 [J]. 环境科技, 2016, 29(4): 46-49.
	Xia C J, Zhou Z Y, He R. Engineering example of advanced treatment of cassava alcohol wastewater [J]. Environmental Science and Technology, 2016, 29(4): 46-49.
14	Herath G A D, Poh L S, Ng W J. Statistical optimization of glyphosate adsorption by biochar and activated carbon with response surface methodology [J]. Chemosphere, 2019, 227: 533-540.
15	狄军贞, 赵微, 朱志涛, 等. 响应曲面法优化强化混凝工艺处理微污染水 [J]. 环境工程学报, 2017, 11(1): 27-32.
	Di J Z, Zhao W, Zhu Z T, et al. Treatment of response surface methodology to optimize enhanced coagulation process for micro-polluted water [J]. Chinese Journal of Environmental Engineering, 2017, 11(1): 27-32.
16	Ferreira S L C, Bruns R E, Ferreira H S, et al. Box-Behnken design: an alternative for the optimization of analytical methods [J]. Analytica Chimica Acta, 2007, 597(2): 179-186.
17	靳晓鹏. 木薯污泥活性炭的制备及对六价铬的吸附研究 [D]. 马鞍山: 安徽工业大学, 2018: 18-19, 26-29.
	Jin X P. Preparation of cassava sludged-based activated carbon and study on hexavalent chromium adsorption [D]. Ma'anshan: Anhui Univercity of Technology, 2018: 18-19, 26-29.
18	朱云华. MIEX树脂去除水源中没食子酸的特性与机理研究 [D]. 马鞍山: 安徽工业大学, 2016: 30-31.
	Zhu Y H. The removal mechanism of gallic acid in source water by MIEX resin [D]. Ma'anshan: Anhui Univercity of Technology, 2016: 30-31.
19	程松, 张利波, 夏洪应, 等. 响应曲面法优化CO₂活化制备夏威夷坚果壳基活性炭 [J]. 环境工程学报, 2015, 9(9): 4495-4502.
	Cheng S, Zhang L B, Xia H Y. Preparation of activated carbon from Hawaii nut shell via CO₂ activation using response surface methodology [J]. Chinese Journal of Environmental Engineering, 2015, 9(9): 4495-4502.
20	Ding L, Jin X, Gao Y, et al. Removal of Cr(VI) from suddenly polluted raw water using MIEX resin parameters of optimization [J]. Fresenius Environmental Bulleti, 2019, 28(7): 5052-5060.
21	范世锁, 李慧, 张浩, 等. 响应面优化污泥-茶渣生物炭的制备 [J]. 环境工程学报, 2017, 11(3): 1778-1786.
	Fan S S, Li H, Zhang H, et al. Application of response surface methodology for the optimization of biochar preparation derived from sludge and tea residue [J]. Chinese Journal of Environmental Engineering, 2017, 11(3): 1778-1786.
22	Esfandiar N, Nasernejad B, Ebadi T. Removal of Mn(II) from groundwater by sugarcane bagasse and activated carbon (a comparative study): application of response surface methodology (RSM) [J]. Journal of Industrial and Engineering Chemistry 2014, 20(5): 3726-3736.
23	贾韫翰, 丁磊, 任培月, 等. 基于响应曲面法的磁性离子交换树脂去除甲基橙和刚果红的优化 [J]. 过程工程学报, 2020, 20(9): 1035-1044.
	Jia Y H, Ding L, Ren P Y, et al. Removal optimization of methyl orange and Congo red adsorbed on MIEX resin using response surface methodology [J]. The Chinese Journal of Process Engineering, 2020, 20(9): 1035-1044.
24	牛志睿, 刘羽, 李大海, 等. 响应面法优化制备污泥基活性炭 [J]. 环境科学学报, 2014, 34(12): 3022-3029.
	Niu Z R, Liu Y, Li D H, et al. Optimization of sludge-based activated carbon preparation using response surface methodology [J]. Acta Scientiae Circumstantiae, 2014, 34(12): 3022-3029.
25	Özdemir M, Bolgaz T, Saka C, et al. Preparation and characterization of activated carbon from cotton stalks in a two-stage process [J]. Journal of Analytical and Applied Pyrolysis, 2011, 92(1): 171-175.
26	You Y, Zhang X, Li P, et al. Co-production of xylooligosaccharides and activated carbons from Camellia oleifera shell treated by the catalysis and activation of zinc chloride [J]. Bioresource Technology, 2020, 306: 123131.
27	吴东强, 马培勇, 胡淞, 等. 污泥-锯末混合ZnCl₂活化制备活性炭 [J]. 过程工程学报, 2018, 18(4): 792-798.
	Wu D Q, Ma P Y, Hu S, et al. Preparation of activated carbon from sludge and sawdust with ZnCl2 as activator [J]. The Chinese Journal of Process Engineering, 2018, 18(4): 792-798.
28	Shoaib A G M, El-Sikaily A, El Nemr A, et al. Preparation and characterization of highly surface area activated carbons followed type IV from marine red alga (Pterocladia capillacea) by zinc chloride activation [J]. Biomass Conversion and Biorefinery, 2020, DOI: 10.1007/s13399-020-00760-8 .
29	Jin M, Hu B, Tang X N, et al. Effect of zinc chloride on the sludge carbon-based adsorbent in diesel desulfurization [J]. Earth and Environmental Science, 2020, 446: 032055.
30	Duan X L, Yuan C G, Jing T T, et al. Removal of elemental mercury using large surface area micro-porous corn cob activated carbon by zinc chloride activation [J]. Fuel, 2019, 239: 830-840.
31	Qi Y F, Yue Q Y, Han S X, et al. Preparation and mechanism of ultra-lightweight ceramics produced from sewage sludge [J]. Journal of Hazardous Materials, 2010, 176(1/2/3): 76-84.
32	杨奇亮, 吴平霄. 改性多孔生物炭的制备及其对水中四环素的吸附性能研究 [J]. 环境科学学报, 2019, 39(12): 3973-3984.
	Yang Q L, Wu P X. Preparation of modified porous biochar and its adsorption properties for tertracycline in water [J]. Acta Science Circumstantiae, 2019, 39(12): 3973-3984.
