Numerical simulation of hollow catalyst with pores in gas-solid reaction system

doi:10.12034/j.issn.1009-606X.220229

Abstract

Abstract:

In the gas-solid flow, fluid and particle usually aggregate to form dense-phase and dilute-phase respectively, resulting in unbalanced mass transfer and reaction rates between the dense- and dilute-phase. The unbalance of dilute- and dense-phase reduces the overall efficiency of the reactor. To solve this problem, a hollow catalyst particle with pores structure is designed. It is aimed to enhance the overall efficiency of fluidized reactors by improving the mass transfer rate between the dense- and dilute-phase. Dense- and dilute-phase are widely distributed during fluidization processes, which can be respectively described by the cluster system and single particle system. In these two phases, the flow, reaction process and mass transfer process of hollow porous particles are studied by numerical simulation, and compared with the solid spherical particle system at the same fluidization condition. Then, the frequency of particle clusters formation and breakage is studied under various fluidization conditions. The time scale is analyzed to measure the possibility of gas transport in the fluidization process. It is found that the time-scales of the mass transfer, the reaction, and the movements of particles between the dilute- and dense-phase could be at the same order for some fluidization conditions. Thus, hollow porous catalyst particle can store the reacting material in the dilute-phase efficiently. When moving to the dense phase, the particle would release the reacting material to provide additional material for the dense-phase reaction. When the reaction is faster than the mass transfer, the overall reaction rate of the hollow porous catalyst system is 26.92%~29.55% higher than that of the solid spherical catalyst system at the studied conditions. It could be predicted that this hollow porous catalyst would be capable to improve the overall reaction efficiency of large gas-solid fluidized bed reactors due to wider distributions of the dilute- and dense-phase.

Key words: hollow porous catalyst, gas-solid flow, mass transfer rate, reaction rate, numerical simulation

摘要：

气固流态化过程中流体和颗粒分别聚集，形成稀密两相，严重限制其传质效率和反应速率的提高。针对此问题，本工作设计了一种中空多孔结构的催化剂颗粒，通过模拟方法研究该颗粒对稀密两相气相传质与反应的影响，及其在稀密相间转换的时间尺度。结果表明，一定的流动强度时，在颗粒稀密相转换的时间尺度内，中空多孔结构的颗粒能够有效地在稀相存储反应气体，并在密相释放，为密相提供额外的反应气体，增强体系的整体反应效率。当催化反应速率高于传质速率时，在所研究的流动条件下中空多孔颗粒体系的反应效率比实心球形颗粒体系高出26.92%~29.55%。可以预见在稀密相分布更广的大型气固流化床反应器中，中空多孔结构的催化剂颗粒能够更为有效地提高反应器的整体效率。

关键词: 中空多孔催化剂, 气固流态化, 传质速率, 反应速率, 数值模拟

CLC Number:

TQ021

Qiuying WU, Lingkai KONG, Ji XU, Wei GE, Shaojun YUAN. Numerical simulation of hollow catalyst with pores in gas-solid reaction system[J]. The Chinese Journal of Process Engineering, 2021, 21(7): 774-785.

吴秋莹, 孔令凯, 徐骥, 葛蔚, 袁绍军. 气固两相流内中空多孔催化剂性能的数值模拟[J]. 过程工程学报, 2021, 21(7): 774-785.

Figures/Tables 21

Fig.1 Catalyst structures and the computing meshes

Table 1 Parameters of numerical simulation

Parameter	Value
Particle diameter/m	5.0×10^-3
Grid size/m	5.0×10^-4~2.0×10^-3
Time step/s	2.0×10^-5~5.0×10^-5
Inlet mass fraction of A	1.0
Inlet mass fraction of B	0.0
Inlet mass fraction of I	0.0

Fig.2 Single particle simulation system

Fig.3 Mass fraction distributions of A component

Table 2 Particle Sherwood number (Shs) of the single solid spherical catalyst

Re_s	Frössling	Ranz-Marshall	Lu et al^[27]	Simulation
10	3.75	3.90	3.68	3.80
20	4.47	4.68	4.51	4.79
40	5.49	5.79	5.67	6.14
60	6.28	6.65	6.56	7.16
100	7.52	8.00	7.94	8.51
200	9.81	10.49	10.46	11.31

Table 3 Parameters of numerical simulation in dilute phase

Parameter	Value
Particle diameter/m	1.0×10^-4
Grid size/m	1.0×10^-5~5.0×10^-5
Time step/s	1.0×10^-7
Inlet mass fraction of A	0.9
Inlet mass fraction of B	0.0
Inlet mass fraction of I	0.1

Fig.4 The velocity distributions (Res=10): (a) solid spherical particle; (b) hollow porous particle

Fig.5 The mass fractions of product B (Res=10): (a) solid spherical particle; (b) hollow porous particle

Fig.6 The mass fractions of reactant A in hollow porous particle systems (Res=10)

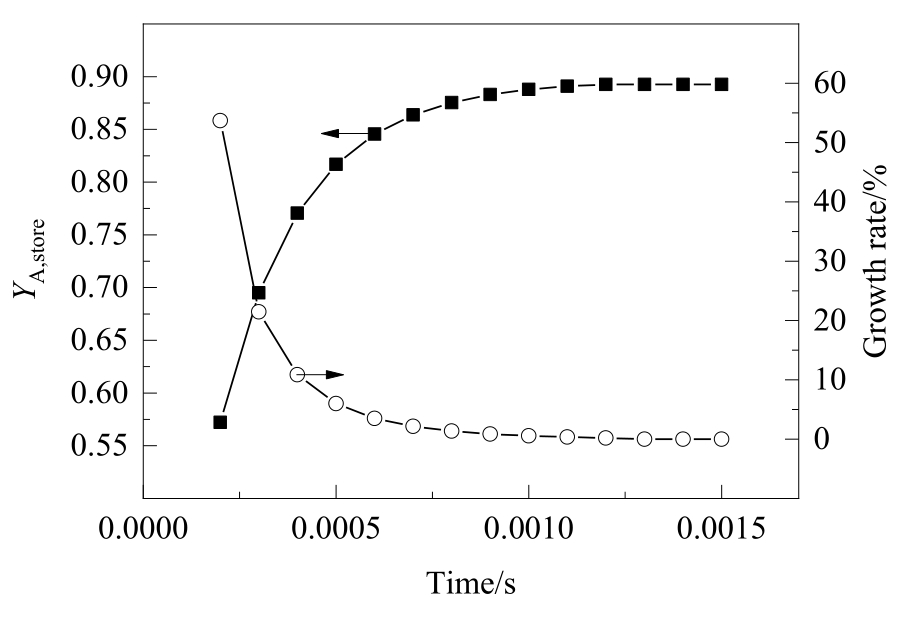

Fig.7 The storage of the gas reactant A and its growth rate in hollow porous particles (Res=10)

Fig.8 The process of storing gas reactant A in hollow porous particles

Fig.9 Particle cluster simulation system

Table 4 Parameter of numerical simulation in dense phase

Parameter	Value
Particle diameter/m	1.0×10^-4
Grid size/m	1.0×10^-5~5.0×10^-5
Time step/s	1.0×10^-7
Inlet mass fraction of A	0.1
Inlet mass fraction of B	0.0
Inlet mass fraction of I	0.9

Fig.10 The average mass fraction of the reactant A remaining in the cavity of hollow porous catalyst

Fig.11 Velocity distributions in particle cluster system (Res=10): (a) solid spherical particle; (b) hollow porous particle

Fig.12 The mass fractions of product B in particle cluster system (Res=10): (a) solid spherical particle; (b) hollow porous particle

Fig.13 The mass fractions of reactant A in particle cluster system (Res=10): (a) solid spherical particle; (b) hollow porous particle

Fig.14 Configuration of the simulation system

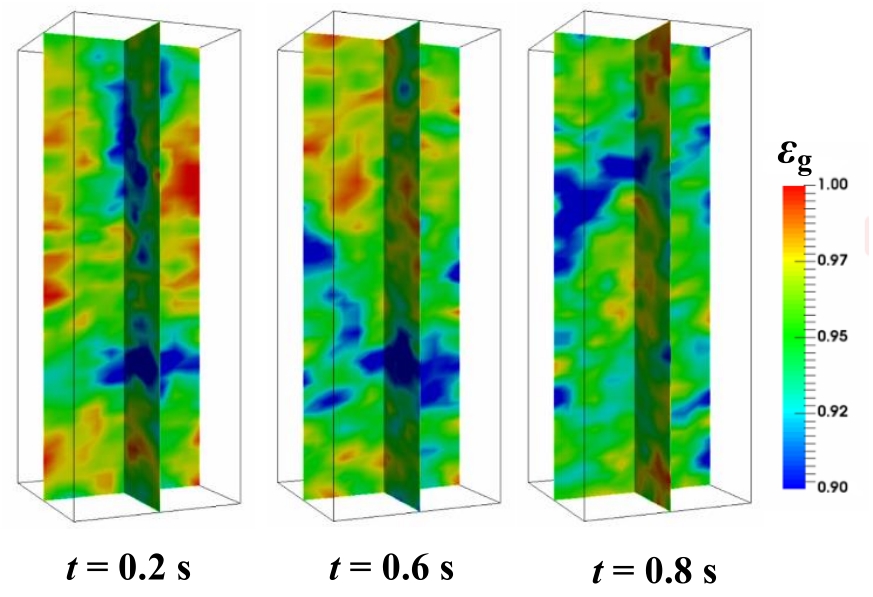

Fig.15 Porosity distributions of particle clusters (Res=10)

Fig.16 Analysis of particle aggregation and dispersion (Res=2)

Fig.17 Analysis of particle aggregation and dispersion (Res=10)

References 43

1	郭慕孙, 李洪钟. 流态化手册 [M]. 北京: 化学工业出版社, 2008: 150-159.
	Kwauk M, Li H Z. Handbook of fluidization [M]. Beijing: Chemical Industry Press, 2008: 150-159.
2	金涌, 祝京旭, 汪展文. 流态化工程原理 [M]. 北京: 清华大学出版社, 2001: 2-14.
	Jin Y, Zhu J X, Wang Z W. Fluidization engineering principles [M]. Beijing: Tsinghua Univeristy Press, 2001: 2-14.
3	李洪钟, 郭慕孙. 回眸与展望流态化科学与技术 [J]. 化工学报, 2013, 64(1): 52-60.
	Li H Z, Kwauk M. Review and prospect of fluidization science and technology [J]. CIESC Journal, 2013, 64(1): 52-60.
4	Amjadi O, Tahmasebpoor M. Improving fluidization behavior of cohesive Ca(OH)₂ adsorbent using hydrophilic silica nanoparticles: parametric investigation [J]. Particuology, 2018, 40: 52-61.
5	Kashyap M, Tadiboyina M R, Okolo C, et al. Improving circulating fluidized bed dehydrogenation technology through optimization of fluidization [J]. Particuology, 2020, 50: 127-134.
6	Yu Y, Zhang C, Zhang Z, et al. Characterizing the catalyst fluidization with field synergy to improve the amine absorption for CO₂ capture [J]. Chinese Journal of Chemical Engineering, 2019, 27(7): 1608-1617.
7	Zhou C, Fan X, Duan C, et al. A method to improve fluidization quality in gas-solid fluidized bed for fine coal beneficiation [J]. Particuology, 2019, 43: 181-192.
8	李洪钟, 郭慕孙. 气固流态化的散式化 [M]. 北京: 化学工业出版社, 2002: 38-52.
	Li H Z, Kwauk M. Particulatization of gas-solid fluidization [M]. Beijing: Chemical Industry Press, 2002: 38-52.
9	Liu B, Zhang X, Wang L, et al. Fluidization of non-spherical particles: sphericity, Zingg factor and other fluidization parameters [J]. Particuology, 2008, 6(2): 125-129.
10	Hilton J E, Mason L R, Cleary P W. Dynamics of gas-solid fluidised beds with non-spherical particle geometry [J]. Chemical Engineering Science, 2010, 65(5): 1584-1596.
11	Nan W, Wang Y, Wang J. Numerical analysis on the fluidization dynamics of rodlike particles [J]. Advanced Powder Technology, 2016, 27(5): 2265-2276.
12	Mandø M, Rosendahl L. On the motion of non-spherical particles at high Reynolds number [J]. Powder Technology, 2010, 202(1/2/3): 1-13.
13	Li X, Visaveliya N, Hafermann L, et al. Hierarchically structured particles for micro flow catalysis [J]. Chemical Engineering Journal, 2017, 326: 1058-1065.
14	Cheng Q, Tian Y, Lyu S, et al. Confined small-sized cobalt catalysts stimulate carbon-chain growth reversely by modifying ASF law of Fischer-Tropsch synthesis [J]. Nature Communications, 2018, 9(1): 1-9.
15	Wang X, Li M, Cao C, et al. Surfactant-free palladium nanoparticles encapsulated in ZIF-8 hollow nanospheres for size-selective catalysis in liquid-phase solution [J]. ChemCatChem, 2016, 8(20): 3224-3228.
16	Yao D, Wang Y, Katherine H L, et al. Balancing effect between adsorption and diffusion on catalytic performance inside hollow nanostructured catalyst [J]. ACS Catalysis, 2019, 9(4): 2969-2976.
17	邹海魁, 初广文, 向阳, 等. 超重力反应强化技术最新进展 [J]. 化工学报, 2015, 66(8): 2805-2809.
	Zou H K, Chu G W, Xiang Y, et al. New progress of HIGEE reaction technology [J]. Journal of Chemical Industry and Engineering, 2015, 66(8): 2805-2809.
18	Nakamura H, Tokuda T, Iwasaki T, et al. Numerical analysis of particle mixing in a rotating fluidized bed [J]. Chemical Engineering Science, 2007, 62(11): 3043-3056.
19	De Broqueville A, De Wilde J. Numerical investigation of gas-solid heat transfer in rotating fluidized beds in a static geometry [J]. Chemical Engineering Science, 2009, 64(6): 1232-1248.
20	De Wilde J, De Broqueville A. Experimental investigation of a rotating fluidized bed in a static geometry [J]. Powder Technology, 2008, 183(3): 426-435.
21	威尔特 J R, 威克斯 C E, 威尔逊 R E, 等. 动量、热量和质量传递原理 [M]. 马紫峰, 吴卫生, 译. 第4版. 北京: 化学工业出版社, 2005: 403-463.
	Welty J R, Wicks C E, Wilson R E, et al. Fundamentals of momentum, heat and mass transfer [M]. Ma Z F, Wu W S, trans. 4th Ed. Beijing: Chemical Industry Press, 2005: 403-463.
22	Lu J, Das S, Peters E A J F, et al. Direct numerical simulation of fluid flow and mass transfer in dense fluid-particle systems with surface reactions [J]. Chemical Engineering Science, 2018, 176: 1-18.
23	Lu B, Luo H, Li H, et al. Speeding up CFD simulation of fluidized bed reactor for MTO by coupling CRE model [J]. Chemical Engineering Science, 2016, 143: 341-350.
24	Carlos Varas A E, Peters E A J F, Kuipers J A M. Computational fluid dynamics-discrete element method (CFD-DEM) study of mass-transfer mechanisms in riser flow [J]. Industrial & Engineering Chemistry, 2017, 56(19): 5558-5572.
25	Das S, Deen N G, Kuipers J A M. A DNS study of flow and heat transfer through slender fixed-bed reactors randomly packed with spherical particles [J]. Chemical Engineering Science, 2017, 160: 1-19.
26	Deen N G, Kuipers J A M. Direct numerical simulation of fluid flow and mass transfer in dense fluid-particle systems [J]. Industrial & Engineering Chemistry Research, 2013, 52(33): 11266-11274.
27	Lu J, Peters E A J F, Kuipers J A M. Direct numerical simulation of fluid flow and mass transfer in particle clusters [J]. Industrial & Engineering Chemistry Research, 2018, 57(13): 4664-4679.
28	Lu J, Peters E A J F, Kuipers J A M. Direct numerical simulation of fluid flow and dependently coupled heat and mass transfer in fluid-particle systems [J]. Chemical Engineering Science, 2019, 204: 203-219.
29	Lu J, Tan M D, Peters E A J F, et al. Direct numerical simulation of reactive fluid-particle systems using an immersed boundary method [J]. Industrial & Engineering Chemistry Research, 2018, 57(45): 15565-15578.
30	Van Der Hoef M A, Van Sint Annaland M, Deen N G, et al. Numerical simulation of dense gas-solid fluidized beds: a multiscale modeling strategy [J]. Annual Review of Fluid Mechanics, 2008, 40(1): 47-70.
31	Green D W, Perry R H. Perry's chemical engineers' handbook [M]. 8th Ed. New York: The McGraw-Hill Companies, 2002: 746-755.
32	Li J, Agarwal R K, Zhou L, et al. Investigation of a bubbling fluidized bed methanation reactor by using CFD-DEM and approximate image processing method [J]. Chemical Engineering Science, 2019, 207: 1107-1120.
33	Christoph K, Christoph G, Alice H, et al. Models, algorithms and validation for opensource DEM and CFD-DEM [J]. Progress in Computational Fluid Dynamics, 2012, 12: 140-152.
34	Chu K W, Wang B, Xu D L, et al. CFD-DEM simulation of the gas-solid flow in a cyclone separator [J]. Chemical Engineering Science, 2011, 66(5): 834-847.
35	Wu C, Cheng Y, Ding Y, et al. CFD-DEM simulation of gas-solid reacting flows in fluid catalytic cracking (FCC) process [J]. Chemical Engineering Science, 2010, 65(1): 542-549.
36	Gidaspow D. Multiphase flow and fluidization: continuum and kinetic theory descriptions [M]. New York: Academic Press, 1994: 421-446.
37	Tian T, Wang H, Ge W, et al. Detecting particle clusters in particle-fluid systems by a density based method [J]. Communications in Computational Physics, 2019, 26(5): 1617-1630.
38	Lu B, Zhang J, Luo H, et al. Numerical simulation of scale-up effects of methanol-to-olefins fluidized bed reactors [J]. Chemical Engineering Science, 2017, 171: 244-255.
39	Tian P, Wei Y, Ye M, et al. Methanol to olefins (MTO): from fundamentals to commercialization [J]. ACS Catalysis, 2015, 5(3): 1922-1938.
40	Ying L, Yuan X, Ye M, et al. A seven lumped kinetic model for industrial catalyst in DMTO process [J]. Chemical Engineering Research and Design, 2015, 100: 179-191.
41	Zhao Y, Li H, Ye M, et al. 3D numerical simulation of a large scale MTO fluidized bed reactor [J]. Industrial & Engineering Chemistry Research, 2013, 52(33): 11354-11364.
42	Das A K, Baudrez E, Marin G B, et al. Three-dimensional simulation of a fluid catalytic cracking riser reactor [J]. Industrial & Engineering Chemistry Research, 2003, 42(12): 2602-2617.
43	Trujillo W R, De Wilde J. Computational fluid dynamics simulation of fluid catalytic cracking in a rotating fluidized bed in a static geometry [J]. Industrial & Engineering Chemistry Research, 2010, 49(11): 5288-5298.
